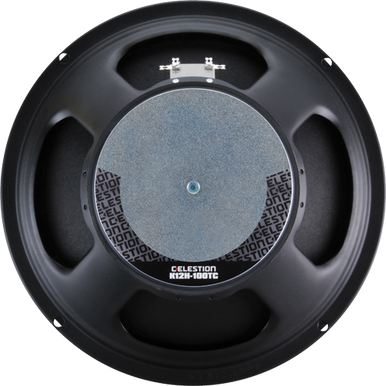

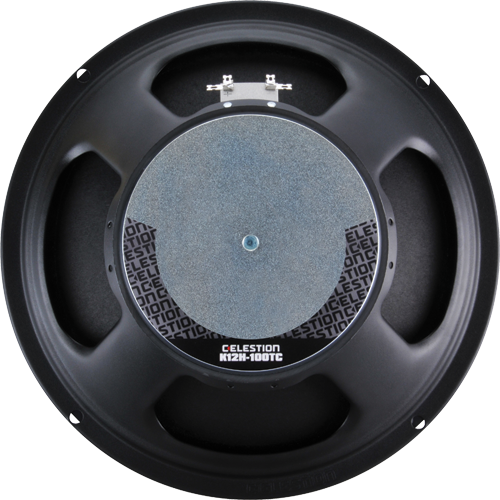

Celestion K12H-100TC

T5402, 12" + 1.75" 100W Coaxial Speaker 8 Ohm

12" twin cone drive unit with extended high frequency response1.75" high temperature copper voice coil for increased reliability and 100Wrms (AES standard) power handlingOptimised cone neck/voice coil assembly for increased strength, minimising high frequency distortion and improving sound qualitySecondary cone terminated by pressure formed cloth dust cap for enhanced mid-band clarityHigh efficiency magnet structure design delivers improved sensitivityDouble roll surround for greater excursion control and smooth frequency response

SPECIFICATIONS:

• Nominal diameter 305mm/12in
• Power rating 100Wrms
• Nominal impedance 8O
• Sensitivity 97dB
• Frequency range 50-10,000Hz
• Voice coil diameter 45mm/1.75in
• Chassis type Pressed steel
• Magnet type Ferrite
• Magnet weight 1.41kg/50oz
• Coil material Round copper
• Former material Kapton
• Cone material Kevlar loaded paper
• Surround material Cloth-sealed
• Suspension SingleXmax 1mm/0.04in
• Gap depth 8mm/0.31in
• Voice coil winding width 10mm/0.39in
